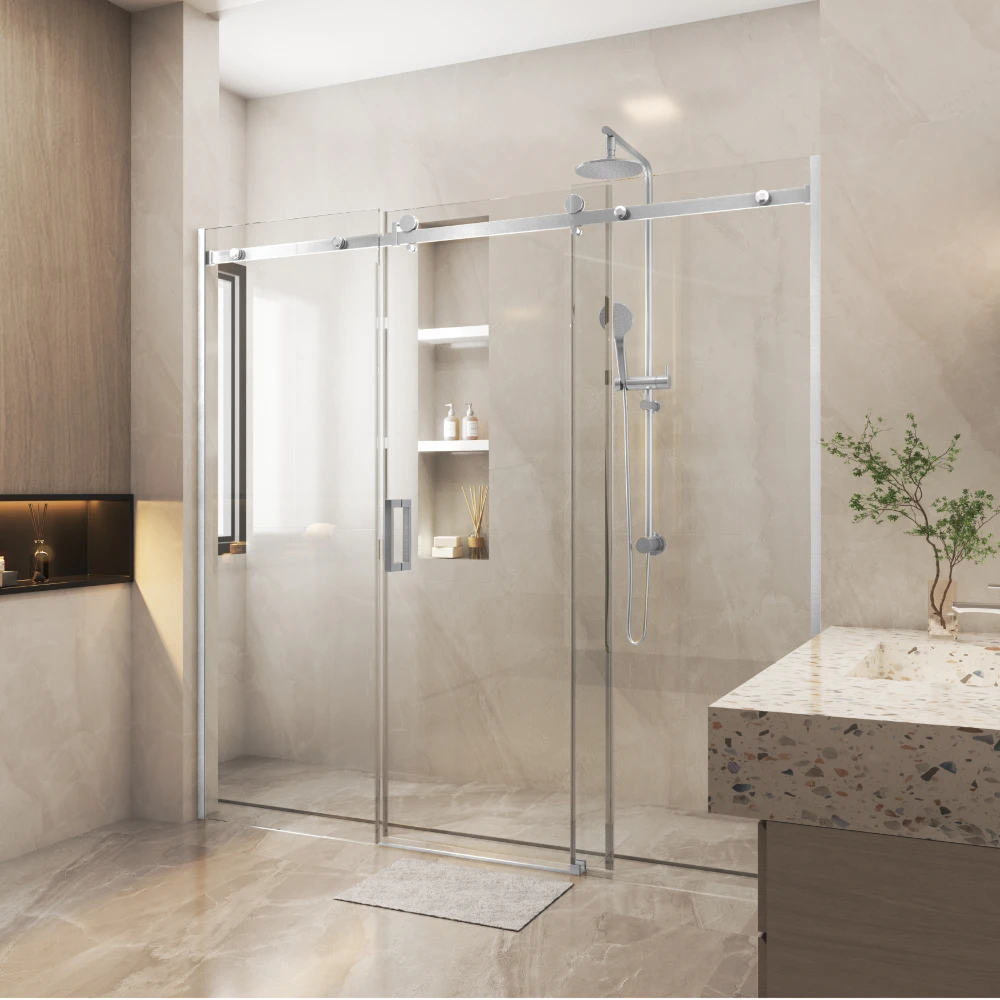

Frameless 3 Panels Single Sliding Door Australian Standard 10mm Clear Tempered Toughen Glass Shower Screen Wall to Wall Middle Entrance

Features

– Made from Australian Standard tempered glass and #304 stainless steel fitting materials
– Fitting finishes colors available with 7 colors refer to Color Option
– Nano-coating is optional for all glass with extra charge
– Can be customized to fit different shower sizes and shapes
– Can be installed as L Shape or Wall to Wall/Inline Direction
– Normal Wall channel allows 10mm and 45mm wall channels allows 20mm for out-of-plumb wall adjustment
– Reversible installation is available

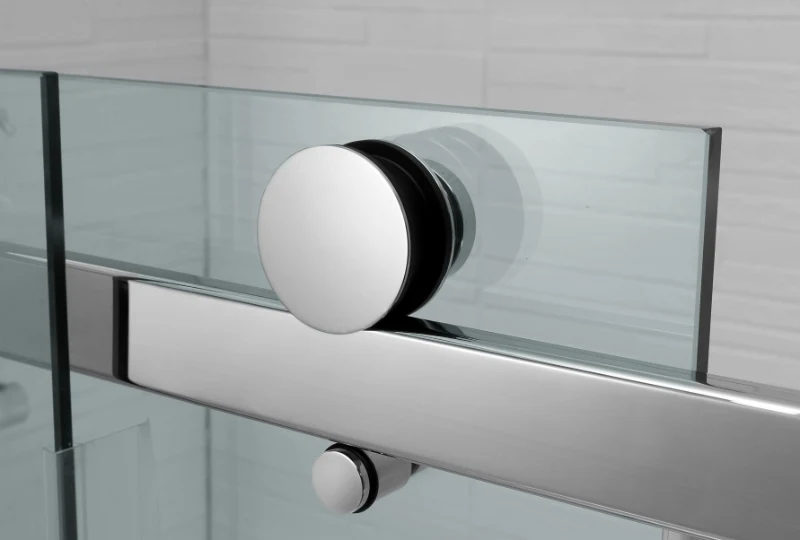

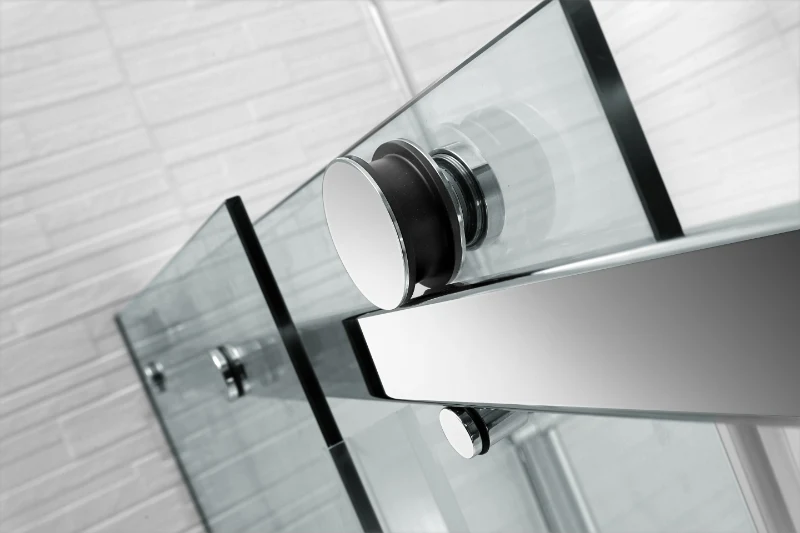

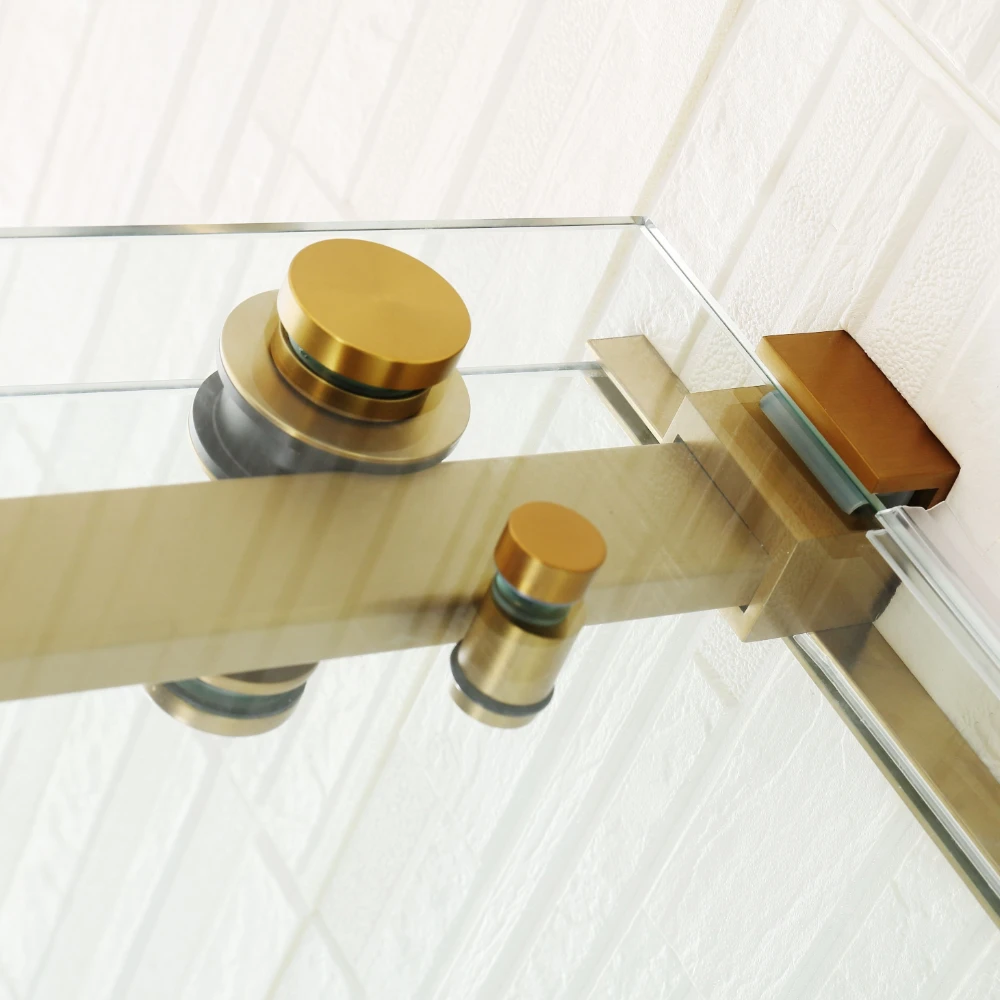

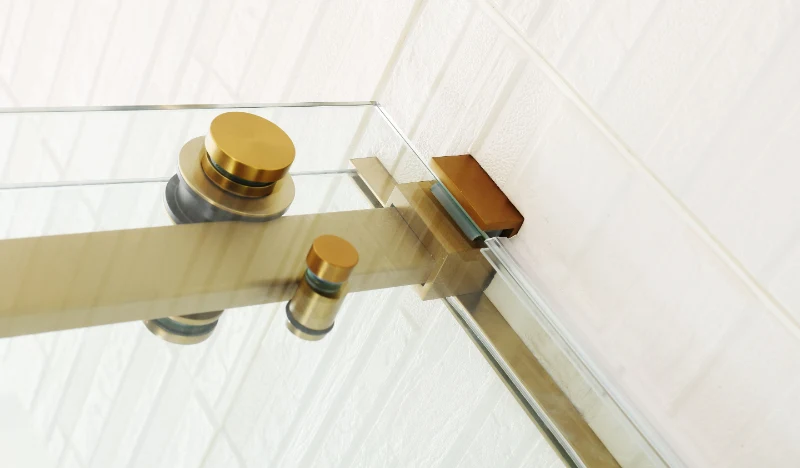

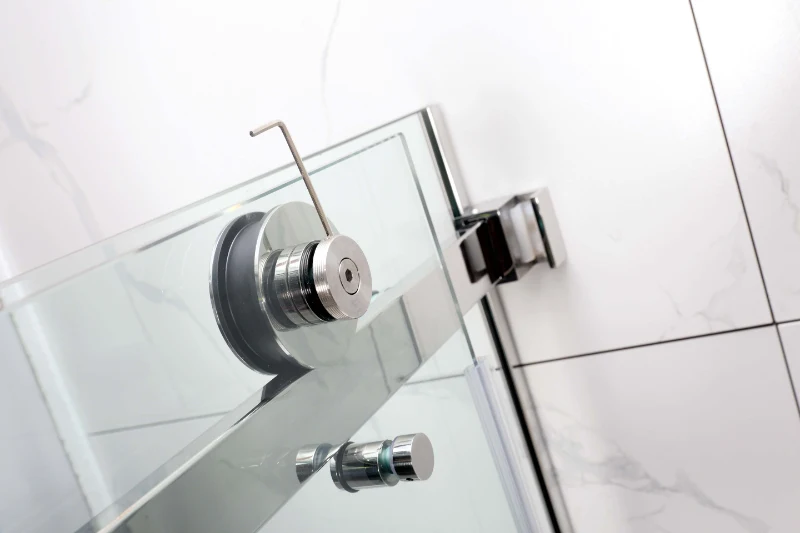

– #304 Stainless steel roller rails and special design brackets, with firm and strong rail bar, soft closing with silence.

Color options

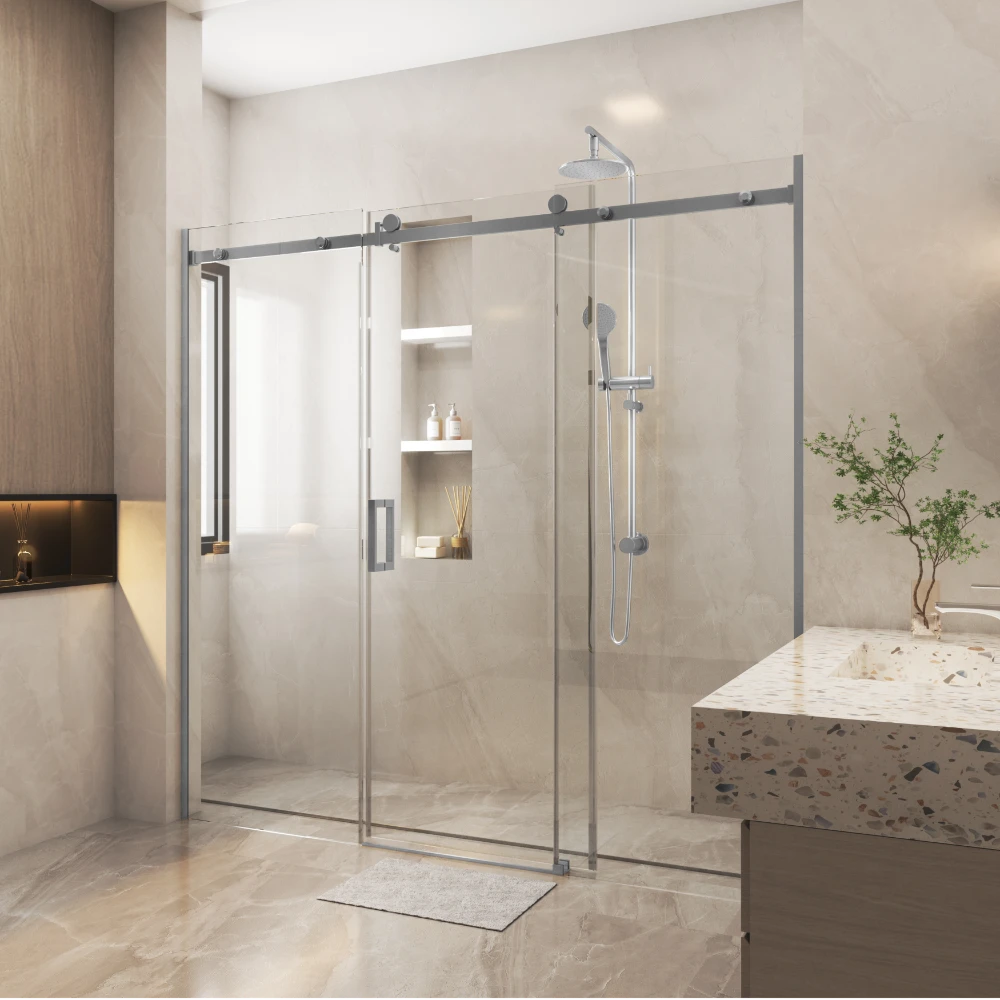

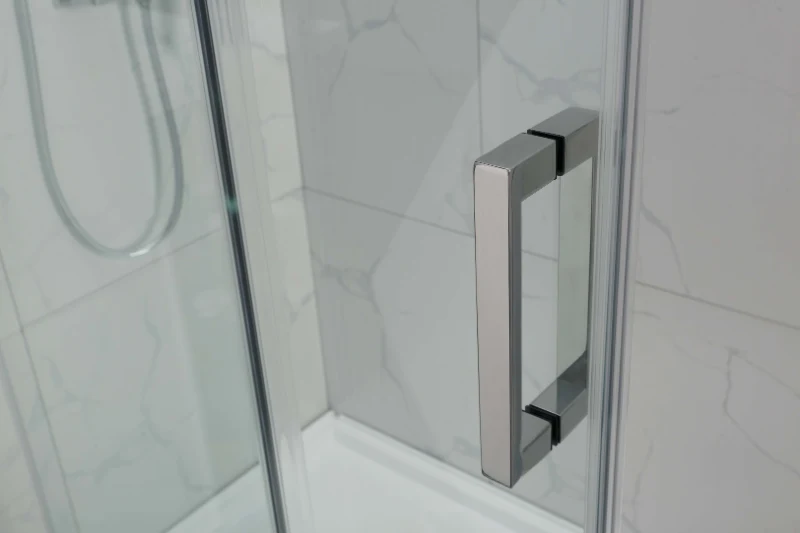

Chrome

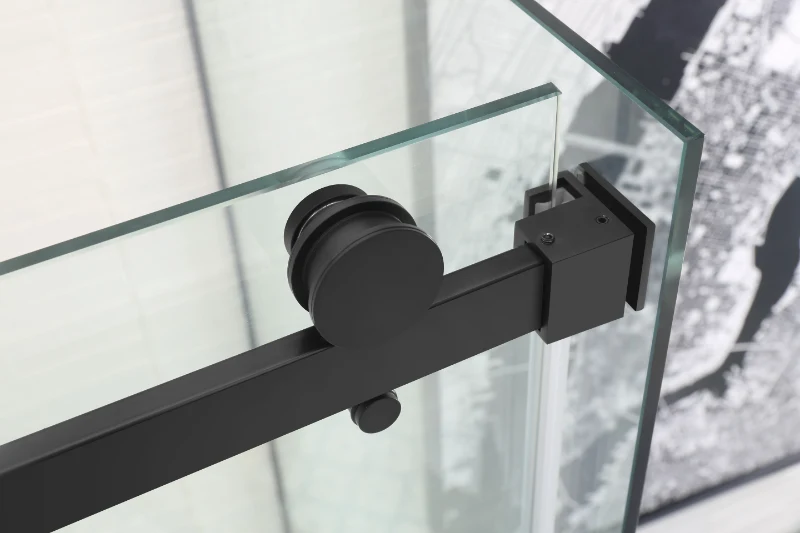

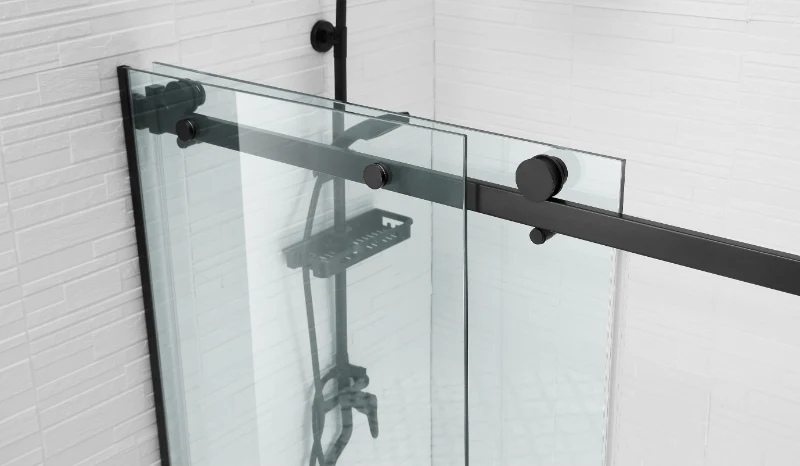

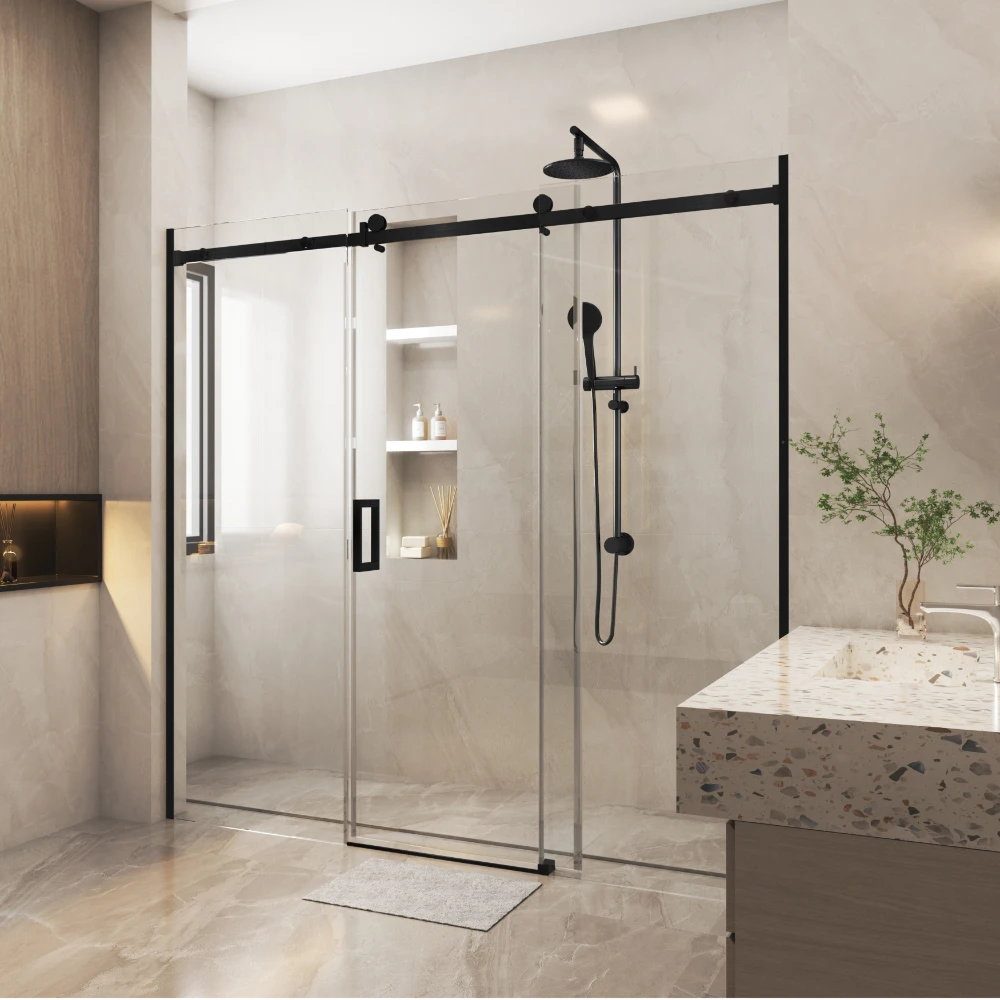

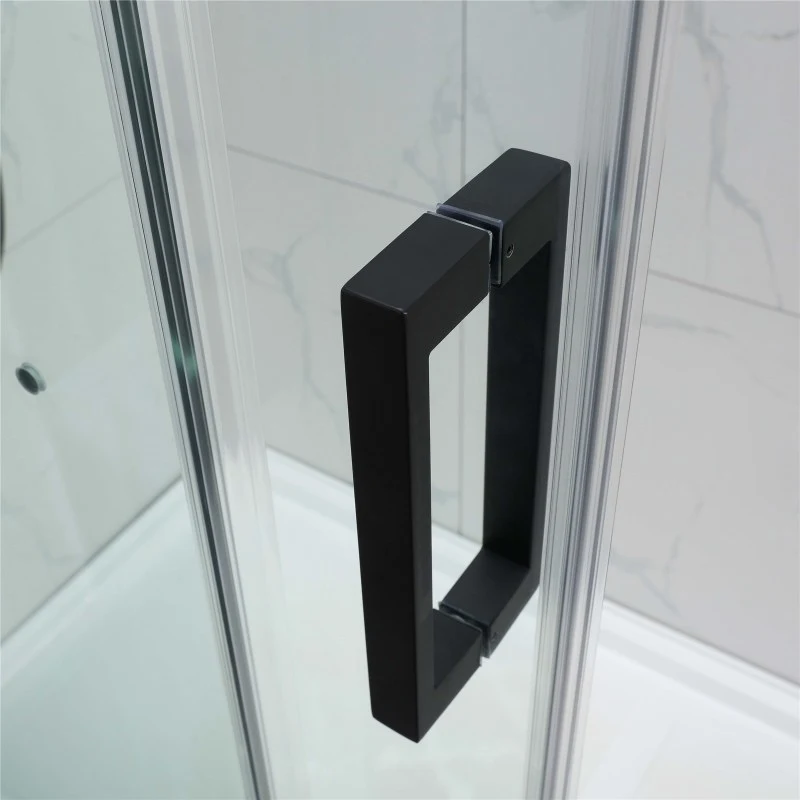

Matt Black

Brushed Nickel

Gun Metal

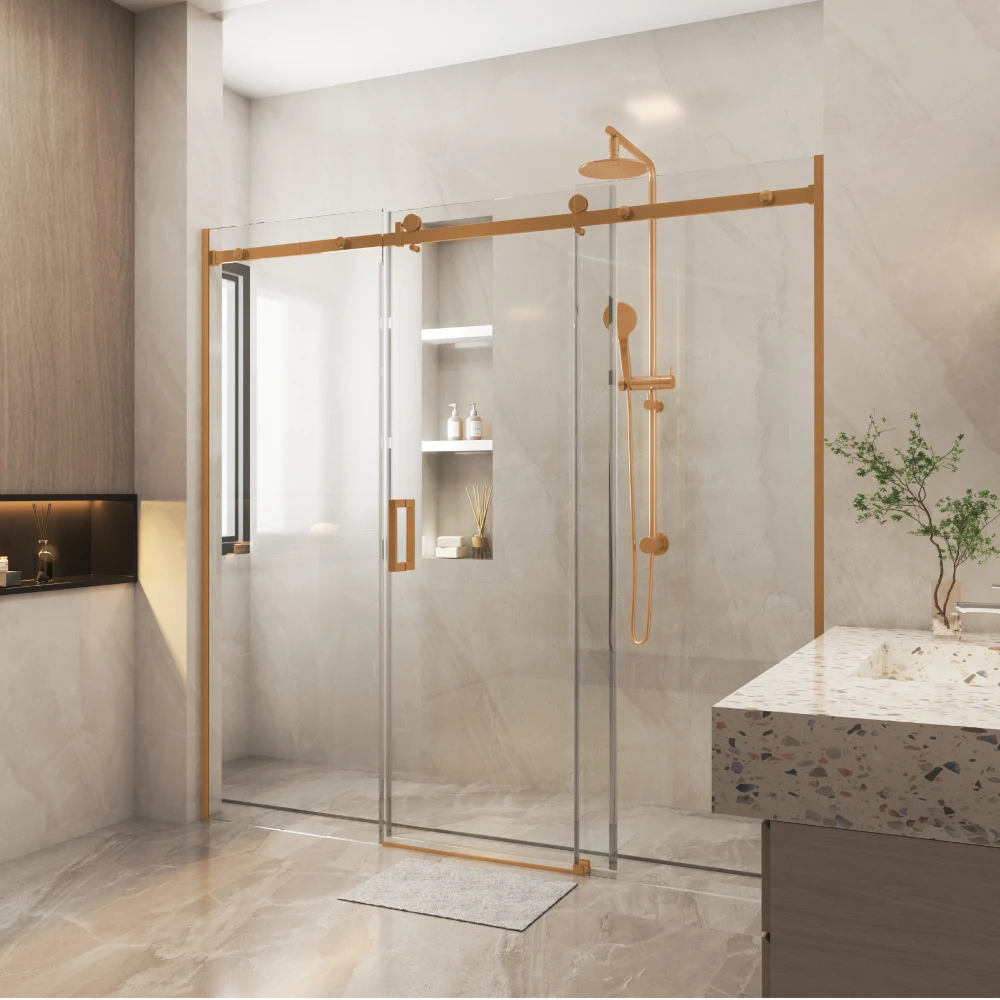

Brushed Gold

Light Gold

Brush Bronze

Available Sizes

CVP031
NO	CONFIGURATION	SKU	SIZES(MM)	Fixed Glass（mm）	Door Glass （mm）	Fixed Glass（mm）	Min Open Space（mm）	Max Open Space（mm）	REMARKS
1	Front Door (Wall To Wall)	CVP031W2W3P1420	1400-2000 (W2W)	Provide exact measurements to supplier to check sizes conbination of each glass panel					Listed glass sizes are recommended sizes for standard delivery, if any other sizes required please check and mention requirements to supplier for different conbinations.
		CVP031W2W3P2000	2000-2050 (W2W)	617mm	769mm	692mm	621mm	671mm
		CVP031W2W3P2050	2050-2100 (W2W)	692mm	769mm	692mm	596mm	646mm
		CVP031W2W3P2100	2100-2150 (W2W)	692mm	769mm	692mm	646mm	696mm
		CVP031W2W3P2150	2150-2200 (W2W)	567mm	869mm	792mm	721mm	771mm
		CVP031W2W3P2200	2200-2250 (W2W)	617mm	869mm	792mm	721mm	771mm
		CVP031W2W3P2250	2250-2300 (W2W)	692mm	869mm	792mm	696mm	746mm
		CVP031W2W3P2300	2300-2350 (W2W)	692mm	869mm	792mm	746mm	796mm
		CVP031W2W3P2350	2350-2400 (W2W)	792mm	869mm	792mm	696mm	746mm
		CVP031W2W3P2400	2400-2450 (W2W)	792mm	869mm	792mm	746mm	796mm
		CVP031W2W3P2450	2450-2530 (W2W)	792mm	944mm	867mm	721mm	801mm
